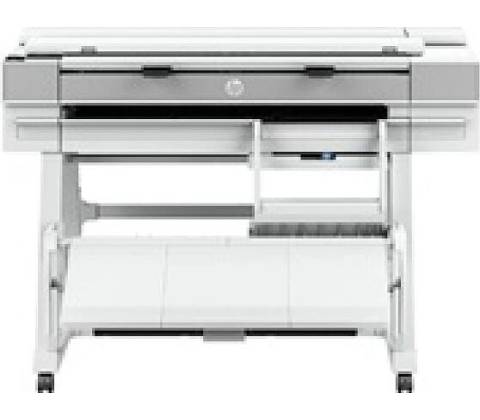

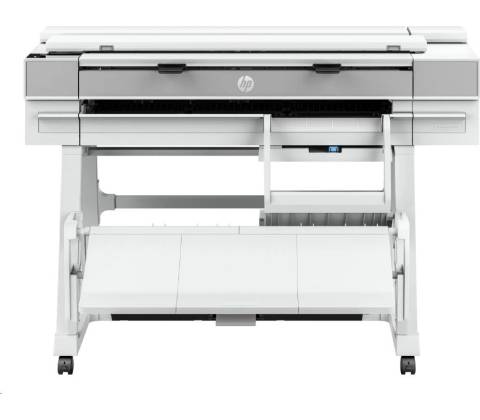

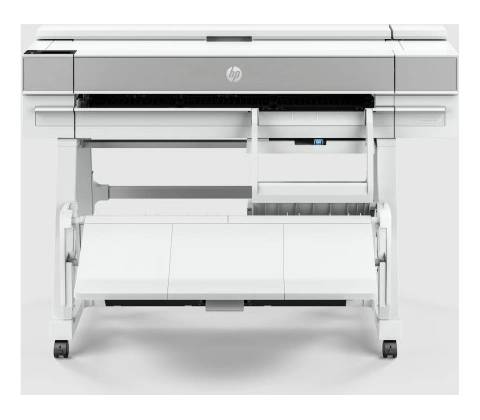

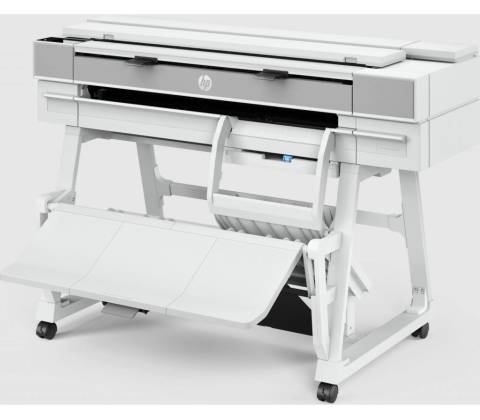

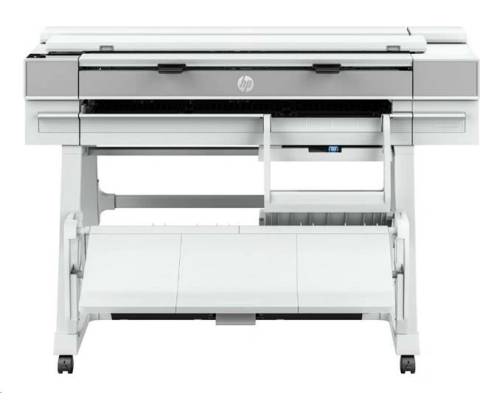

HP DesignJet T950 MFP 2Y9H3A#B19

Technical specifications

Print

Print speed 21 sec/page on A1, 120 A1 prints per hour

Print resolution

Up to 2400 x 1200 optimized dpi

Technology

HP Thermal Inkjet

Margins

• Roll: 5 x 5 x 5 x 5 mm
• Sheet: 5 x 5 x 5 x 5 mm

Ink types

Pigment-based (C, M, Y, mK)

Ink drop 6 pl (C, M, Y); 12.6 pl (mK)

Printheads 1 (C, M, Y, mK)

Printhead nozzles 1376 per color; 5504 in total

Line accuracy ±0.1%

Minimum line width 0.02 mm (via raster driver)

Max optical density 15 L* min/1.7 D

Multifunction capabilities

Scan speed

Up to 3.81 cm/sec (color, 200 dpi)

Up to 11.43 cm/sec (grayscale, 200 dpi)

Scan resolution

Up to 600 dpi

Technology

Sheetfed, CIS (Contact Image Sensor), media jam detection sensor, front feed scanning method

Scan format

JPEG, PDF, TIFF

Scan destinations

Scan to email, network, and USB. Scan to cloud, computer, and mobile through HP Smart app.

Thickness

Up to 0.8 mm

Media

Handling

Sheet feed, roll feed, front-loading input tray (100 sheet capacity), sheet organizer (50 sheet capacity ), stacker (40 sheetcapacity ), automatic horizontal cutter

Roll size 369 to 914 mm

Maximum roll diameter 140 mm

Sheet size

• Front-loading input tray: 210 x 279 to 305 x 457 mm
• Manual feed: 210 x 279 to 914 x 1676 mm

Standard sheets

• Input tray: A4, A3
• Manual feed: A4, A3, A2, A1, A0

Grammage 60 to 280 g/m2 (roll/manual feed); 64 to 200 g/m2 (front-loading input tray)

Thickness

Up to 0.3 mm

Applications

Line drawings; Renderings; Presentations; Maps; Posters

Memory 2 GB

Hard disk

None

Job storage 2.7 GB reprint queue

Connectivity

Interfaces

Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n

Native print languages

TIFF, JPEG, URF, PDF, HP-GL/2, HP-RTL, CALS G4

Printing paths

Wi-Fi Direct, remote printing, Apple AirPrint and HP Smart app for Android and iOS devices, Windows and macOS printerdrivers, printing support for Chrome OS, print from USB pen drive

Drivers

Raster driver for macOS and Windows, HP-GL/2 driver for Windows

Security features

HP Secure Boot, whitelisting, Security event logging, Disable network ports and protocols, SNMPv3, 802.1x compatibility,TLS/SSL, Semi-permanent-queue Erase, NTLM v2, HP Web JetAdmin, HP Security Manager, SIEM Integration

Dimensions (W x D x H)

Printer 1407 x 720 x 967 mm

Shipping 1575 x 630 x 780 mm

Weight

Printer 71 kg

Shipping 97 kg

What's in the box

HP DesignJet T950 MFP, printheads, ink cartridges, printer stand, spindle, guide, poster, warranty fl yer, power cord

HP Software and solutions

HP Click for Windows and macOS, HP Support Assistant for Windows, HP Smart for Windows, macOS, Android, and iOS

Remote print enabled

Yes

One-click multi-size printing

Yes

Environmental ranges

Recycled plastic in printer 36%

Operating temperature 5 to 40°C

Operating humidity 20 to 80% RH

Operating altitude

Up to 3000 m

Storage temperature -25 to 55°C

Acoustics

Sound pressure 42 dB(A) (operating),
